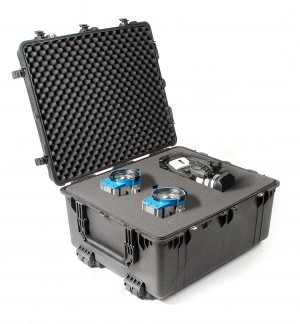

Pelican Large Cases
| Large Case Specifications | |||
| Model Number | Inside Dimensions | Case Weight (Lbs.) Weight w/Foam |
Case Weight (Lbs.) Weight wo/Foam |
|---|---|---|---|
| 0340 | 18" x 18" x 18" | 29.76 | 24 |
| 0350 | 20" x 20" x 20" | 32.01 | 25.99 |
| 0370 | 24" x 24" x 24" | 41 | 31.9 |
| 0450 | 20.6" x 10.9" x 12.7" | 33 | 41.5 |
| 0500 | 34.9" x 18.5" x 25.3" | 58.6 | 50 |
| 0550 | 47.6" x 24.1" x 17.7" | 95 | 79.2 |
| 1560 | 20.4" x 15.4" x 9" | 20 | 17 |
| 1600 | 21.4" x 16.5" x 7.9" | 14.1 | 13 |
| 1605 Air | 26" x 14" x 8.38" | 11.61 | 9.28 |
| 1607 Air | 21.1" x 15.8" x 11.6" | 16.1 | 13.2 |
| 1610 | 21.8" x 16.7" x 10.6" | 22.3 | 19.5 |
| 1615 Air | 29.59" x 15.5" x 9.38" | 17.6 | 14.06 |
| 1620 | 21.48" x 16.42" x 12.54" | 24.62 | 21.20 |
| 1630 | 27.70" x 20.98" x 15.50" | 36 | 31 |
| 1637 Air | 23.43" x 17.55" x 13.25" | 19.4 | 15.2 |
| 1640 | 23.70" x 24.0" x 13.90" | 38 | 34 |
| 1650 | 28.57" x 17.52" x 10.65" | 28.06 | 24.03 |
| 1660 | 28.20" x 19.66" x 17.63" | 42.16 | 34.16 |
| 1670 | 28.10" x 16.49" x 9.19" | 26 | 23 |
| 1690 | 30.01" x 25.02" x 15.00" | 43 | 34 |
| 1700 | 35.75" x 13.50" x 5.25" | 16.98 | 16.09 |
| 1720 | 42.0" x 13.50" x 5.25" | 18.96 | 16.76 |
| 1730 | 34.0" x 24.0" x 12.50" | 38 | 30 |
| 1740 | 40.98" x 12.92" x 12.51" | 27 | 22 |
| 1745 Air | 44.0" x 16.8" x 7.9" | 21.1 | 17.3 |
| 1750 | 50.50" x 13.50" x 5.25" | 25.57 | 23.59 |
| 1770 | 54.58" x 15.58" x 8.63" | 36 | 29 |
| 1780 | 41.12" x 21.54" x 14.88" | 49 | 38.4 |
